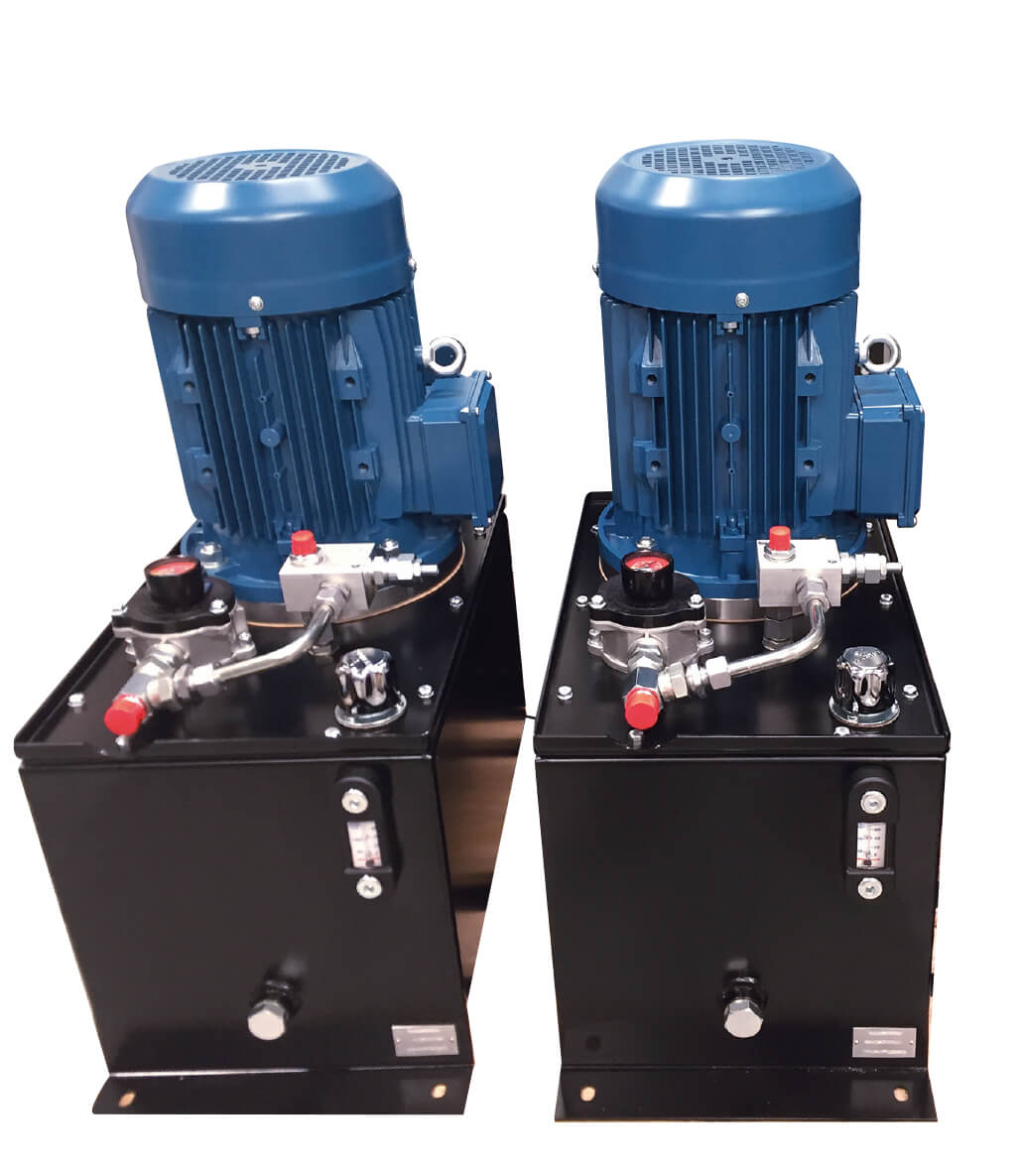

Types of Hydraulic Power Packs illustrative image

Types of Hydraulic Power Packs

At Hydrastore, we provide a range of hydraulic power packs designed for various industries. Whether your needs involve standard hydraulic units or bespoke hydraulic power packs, knowing the different types helps you choose the right one. Below are the main types of hydraulic power packs, with examples of their uses and reasons for choosing one over the others.

Standard Hydraulic Power Packs

1. Standard Hydraulic Power Packs

Regular hydraulic power packs are already set up for many industrial tasks. These units include essential parts, such as a hydraulic pump, an electric motor, and a reservoir. They provide steady performance for typical jobs.

Example: A warehouse may use a standard hydraulic power unit to power conveyor systems that move products. The unit provides pressure and flow, which is crucial for keeping operations smooth without costly customisation.

Features:

  • Cost-effective and quick to implement
  • Integrated hydraulic valves for standard flow control
  • Suitable for operations with steady requirements

Applications: Factory conveyor systems, industrial machinery, and lifting equipment.

2. Bespoke Hydraulic Power Packs

Custom hydraulic power packs are designed to meet specific operational requirements where standard systems are not sufficient. Hydrastore develops and builds these units using carefully selected hydraulic components and control systems tailored to each client's needs.

Example:In industrial environments such as manufacturing or process facilities and mechanical handling, Custom hydraulic power packs are essential for delivering the precise flow rates, pressure control, and durability required for continuous, heavy-duty performance.

Features:

  • Custom-engineered hydraulic power packs with advanced functionality
  • Options for high-capacity hydraulic cylinders and multi-functional control valves
  • Designed to meet specific power, space, and environmental constraints

Applications: Custom machinery, mining operations, process equipment, and industrial automation.

Offshore gas and oil power pack

3. Mini Hydraulic Power Packs

Mini hydraulic power packs are small and created for situations where space is tight, but hydraulic supply remains important. These units suit mobile uses or small machines very well.

Example: For instance, a delivery vehicle with a tail lift often uses a mini hydraulic power pack to load and unload goods. These units are compact enough to fit inside the chassis but supply enough hydraulic power for lifting.

Features:

  • Small and lightweight with essential hydraulic components
  • Hydraulic fluid and oil reservoir optimised for compact operation
  • Energy-efficient, with a balance of size and output

Applications: Vehicle lifts, portable machinery, and compact construction tools.

Mini hydraulic power pack

4. Micro Hydraulic Power Packs

Mini hydraulic power packs are compact units designed to deliver hydraulic power in applications where space is limited but performance cannot be compromised. These systems are ideal for installations that require reliable hydraulic force in confined or restricted areas.

Example: Mini power packs are commonly used in compact industrial equipment or small-scale automation systems where space constraints make standard hydraulic systems impractical.

Features:

  • Space-saving design with efficient power delivery
  • Available with a range of motor and pump combinations
  • Easy integration into tight enclosures or limited-access installations

Applications: Used in situations where hydraulic power is essential but installation space is at a premium, such as in small machinery, portable equipment, or compact industrial systems.

5. DC Hydraulic Power Packs

DC hydraulic power packs are designed for mobile or remote operations and are powered by a DC motor. These units are suitable for vehicles, temporary systems, or situations where grid power isn’t available.

Example: Emergency response vehicles often rely on DC hydraulic power packs to operate equipment like extendable ladders or hydraulic cutters. A battery's power supply ensures quick deployment and reliability in emergencies.

Features:

  • Portable with flexible power options
  • Ideal for hydraulic machinery in mobile settings
  • Quick-response power source

Applications: Rescue equipment, agricultural machinery, and off-grid hydraulic systems.

6. AC Hydraulic Power Packs

AC hydraulic power packs use electric motors connected to a main power grid to provide high and consistent power output. These are ideal for industrial settings where a stable power supply is necessary.

Example: Steel plants often use AC hydraulic power units to operate hydraulic presses that shape and mould large metal sheets. The continuous hydraulic fluid flow ensures efficiency during heavy-duty operations.

Features:

  • High power of the motor for sustained operations
  • Efficient for heavy-duty industrial tasks
  • Suitable for applications where long-term power is needed

Applications: Industrial presses, factory automation, and large-scale machinery.

Choosing the Right Hydraulic Power Pack

The right hydraulic power pack is vital for seamless operation and equipment lifespan. Important to consider factors include:

  • Flow Rate and Pressure: Figure out the hydraulic pressure and flow needed for your task.
  • Space Requirements: Mini or micro hydraulic power packs should work well when space matters.
  • Power Source: Pick electric motors for fixed setups and DC motors for mobile or remote tasks.
  • Customisation: A unique hydraulic power pack often fits best for special tasks, offering specific solutions and adaptability.

Summary of Power Pack Options

  • Standard Hydraulic Power Packs: Ideal for general industrial use with simple setups.
  • Bespoke Hydraulic Power Packs: Custom-designed for specialised applications.
  • Mini Hydraulic Power Packs: Compact solutions for mobile or space-limited projects.
  • Micro Hydraulic Power Packs: Precision power for small-scale, detailed operations.
  • DC Hydraulic Power Packs: Portable and battery-powered for remote use.
  • AC Hydraulic Power Packs: High output, continuous power for industrial applications.

Hydrastore is committed to providing quality hydraulic equipment and expert support to help you choose and maintain the perfect hydraulic power unit for your application. Whether you're looking for a standard solution or a custom hydraulic power pack, our team is ready to assist with all your hydraulic needs.
