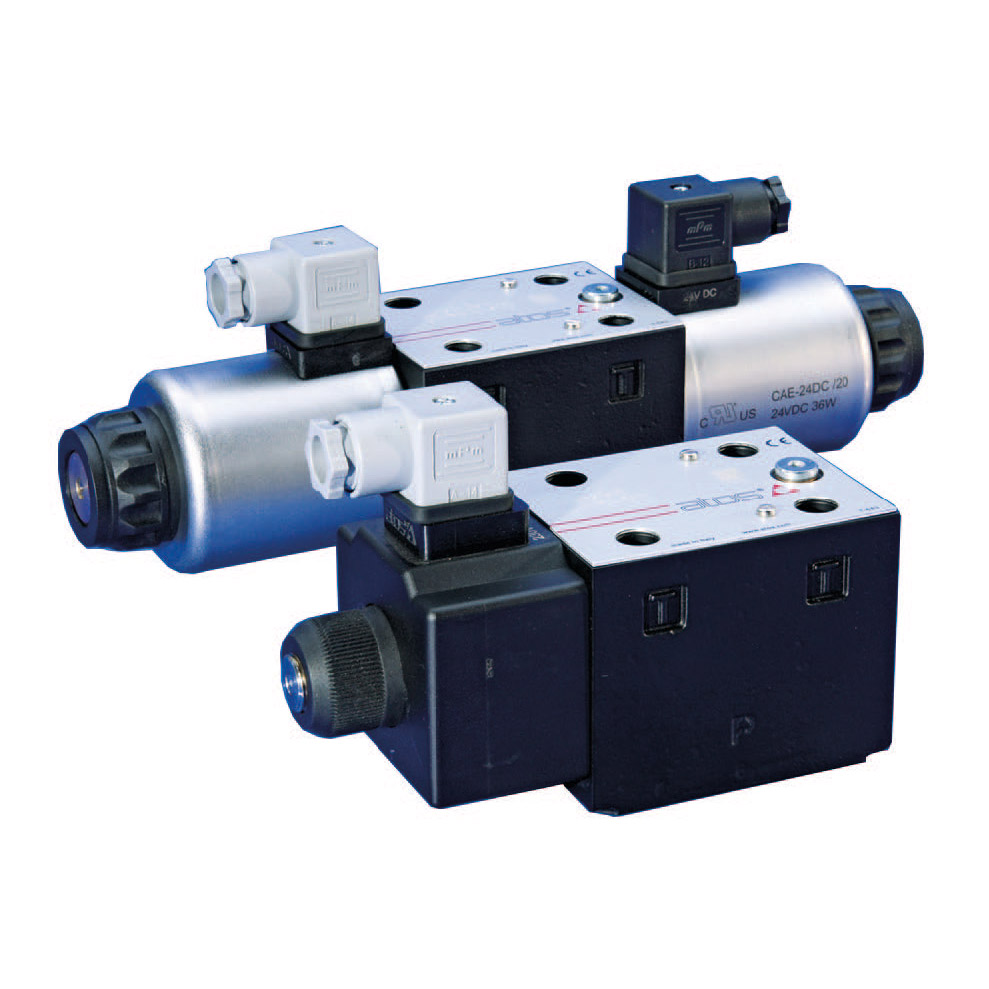

Spool type, two or three position direct operated valves with threaded solenoids certified according the North America standard cURus.

Ordering Chart

Part noSymbolDescriptionMax flowMax pressure
DKE-1610-X-00/DCDKE-1610-X-00/DC symbolCETOP 05 Single solenoid valve100350
DKE-1610-X-00/ACDKE-1610-X-00/AC symbolCETOP 05 Single solenoid valve100350
DKE-1611-X-00/DCDKE-1611-X-00/DC symbolCETOP 05 Single solenoid valve100350
DKE-1611-X-00/ACDKE-1611-X-00/AC symbolCETOP 05 Single solenoid valve100350
DKE-1613-X-00/DCDKE-1613-X-00/DC symbolCETOP 05 Single solenoid valve100350
DKE-1613-X-00/ACDKE-1613-X-00/AC symbolCETOP 05 Single solenoid valve100350
DKE-1631/2-X-00/DCDKE-1631/2-X-00/DC symbolCETOP 05 Single solenoid valve100350
DKE-1631/2-X-00/ACDKE-1631/2-X-00/AC symbolCETOP 05 Single solenoid valve100350
DKE-1710-X-00/DCDKE-1710-X-00/DC symbolCETOP 05 Double solenoid valve100350
DKE-1710-X-00/ACDKE-1710-X-00/AC symbolCETOP 05 Double solenoid valve100350
DKE-0711-X-00/DCDKE-0711-X-00/DC symbolCETOP 05 Double solenoid valve100350
DKE-0711-X-00/ACDKE-0711-X-00/AC symbolCETOP 05 Double solenoid valve100350
DKE-1713-X-00-DCDKE-1713-X-00-DC symbolCETOP 05 Double solenoid valve100350
DKE-1713-X-00-ACDKE-1713-X-00-AC symbolCETOP 05 Double solenoid valve100350
DKE-1714-X-00-DCDKE-1714-X-00-DC symbolCETOP 05 Double solenoid valve100350
DKE-1714-X-00-ACDKE-1714-X-00-AC symbolCETOP 05 Double solenoid valve100350

Ordering Chart - Cetop 05 solenoid coils

Part no
SP-CAE-110/50/60AC
SP-CAE-230/50/60AC
SP-CAE-12DC
SP-CAE-24DC

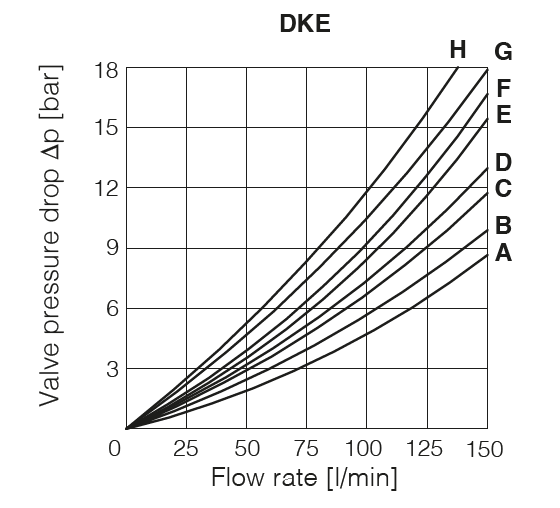

6 Q/ΔP DIAGRAMS based on mineral oil ISO VG 46 at 50°C

, section 6, illustration 1, section 6, illustration 2

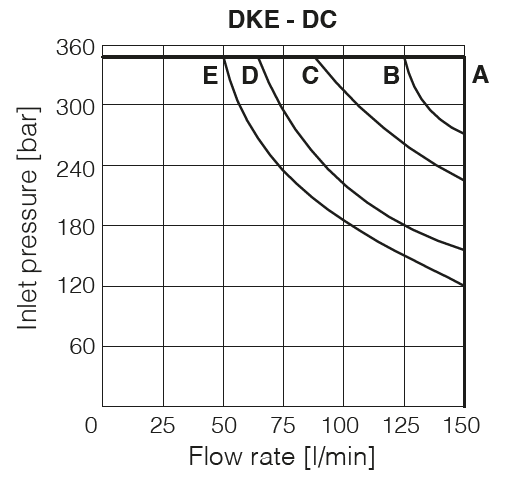

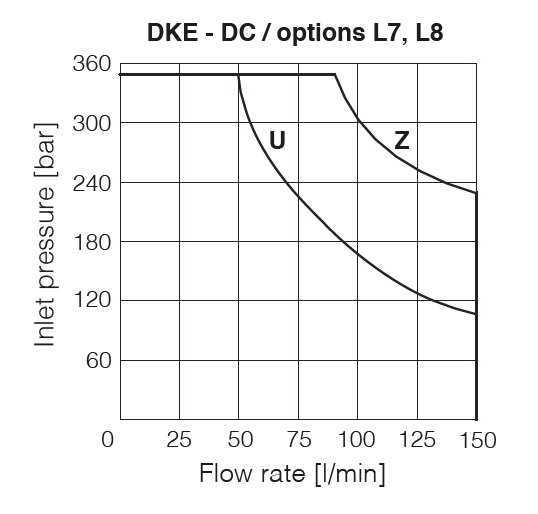

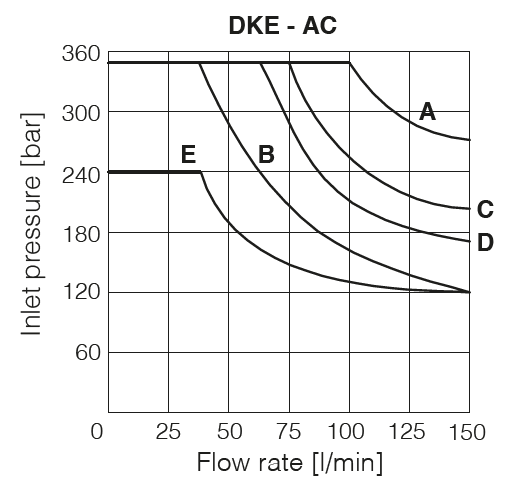

7 OPERATING LIMITS based on mineral oil ISO VG 46 at 50°C

The diagrams have been obtained with warm solenoids and power supply at lowest value (Vnom - 10%). The curves refer to application with symmetrical flow through the valve (i.e. P→A and B→T). In case of asymmetric flow and if the valves have the devices for controlling the switching times the operating limits must be reduced.

, section 7, illustration 1, section 7, illustration 2, section 7, illustration 3

3 MAIN CHARACTERISTCS, SEALS AND HYDRAULIC FLUIDS - for other fluids not included in below table, consult our technical office

Assembly position / location
Any position for all valves except for type - 170* (without springs) that must be installed with horizontal axis if operated by impulses
Subplate surface finishing
Roughness index Ra 0,4 - flatness ratio 0,01/100 (ISO 1101)
MTTFd values according to EN ISO 13849
150 years, for further details see technical table P007
Ambient temperature
Standard execution = -30°C ÷ +70°C
Ambient temperature /PE option = -20°C ÷ +70°C
/BT option = -40°C ÷ +70°C
Seals, recommended fluid temperature F
NBR seals (standard) = -20°C ÷ +60°C, with HFC hydraulic fluids = -20°C ÷ +50°C
KM seals (/PE option)= -20°C ÷ +80°C
HNBR seals (/BT option)= -40°C ÷ +60°C, with HFC hydraulic fluids = -40°C ÷ +50°C
Recommended viscosity
15÷100 mm2/s - max allowed range 2.8 ÷ 500 mm2/s
Fluid contamination class
ISO 4406 class 21/19/16 NAS 1638 class 10, in line filters of µm (β25 ≥75 recommended)
Hydraulic fluidSuitable seals typeClassificationRef. Standard
Mineral oilsNBR, FKM, HNBRHL, HLP, HLPD, HVLP, HVLPDDIN 51524
Flame resistant without waterFKMHFDU, HFDRISO 12922
Flame resistant with waterNBR, HNBRHFC
Flow direction

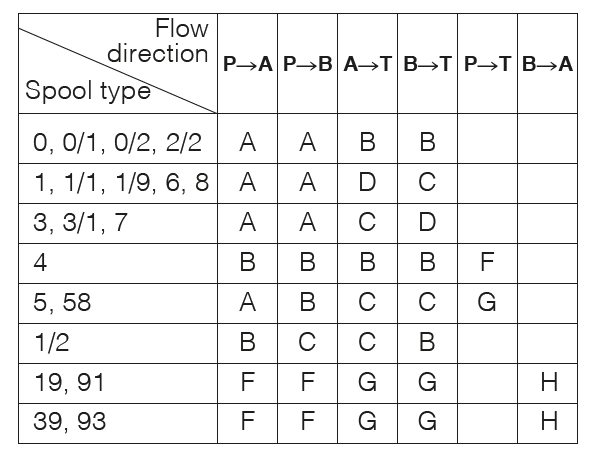

As shown in the symbols of table 2
Operating pressure
Ports P,A,B: 350 bar;
Port T 210 bar for DC version (250 bar with option /Y);
160 bar for AC version
Rated flow
See diagrams Q/Δp at section 6
Maximum flow
150 l/min, see operating limits at section 7

Coils characteristics

Insulation class
H (180°C) for DC coils F (155°C) for AC coils
Due to the occuring surface temperatures of the solenoid coils, the European standards EN ISO 13732-1 and EN ISO 4413 must be taken into account
Protection degree to DIN EN 60529
IP 65 (with connectors 666, 667, 669 correctly assembled)
Relative duty factor
100%
Supply voltage and frequency
See electric feature
Supply voltage tolerance
± 10%
Certification
CURUS North American Standard
