Hydrastore Direct Acting Relief Valves - VMDR40 - 40 lpm

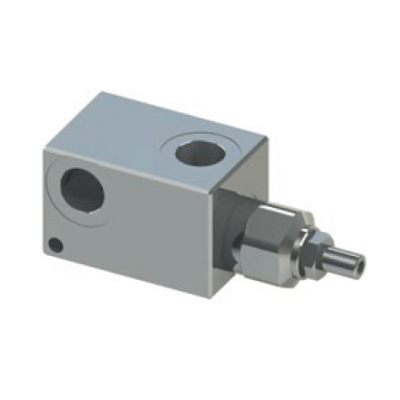

Direct Acting Relief Valves - VMDR40 - 40 lpm illustration

Products may vary from image.

Product information

  • Mineral oil ISO 6743/4 (DIN 51524)
  • Oil viscosity 15-250 mm /s (15 to 250 cSt)
  • Max contamination index with filter ISO 4406:1999 Classe 19/17/14
  • Oil temperature -20°C +80°C -4°F + 176°F
  • Ambient temperature -20°C +50°C -4°F + 122°F
    It is necessary a filter use to protect the valve (advised filtration 15 µm)

Product Specification Documents

Providing further details on product specifications and dimensions

Ordering chart

Part no.SymbolDescriptionSize (BSP)Max. flow (lpm)Max. pressure (bar)PriceQtyDownload symbols
VMDR40-120-C-1VMDR40-120-C-1 symbol1/2" BSP DIRECT ACTING RELIEF VALVES 10-90 BAR1/2"40350£28.57
VMDR40-120-C-2VMDR40-120-C-2 symbol1/2" BSP DIRECT ACTING RELIEF VALVES 20-210 BAR1/2"40350£28.57
VMDR40-380-C-1VMDR40-380-C-1 symbol3/8" BSP DIRECT ACTING RELIEF VALVES 10-90 BAR3/8"40350£27.80
VMDR40-380-C-2VMDR40-380-C-2 symbol3/8" BSP DIRECT ACTING RELIEF VALVES 20-210 BAR3/8"40350£27.80

Please note that prices displayed are exclusive of carriage and VAT. These will be calculated and added at checkout.
